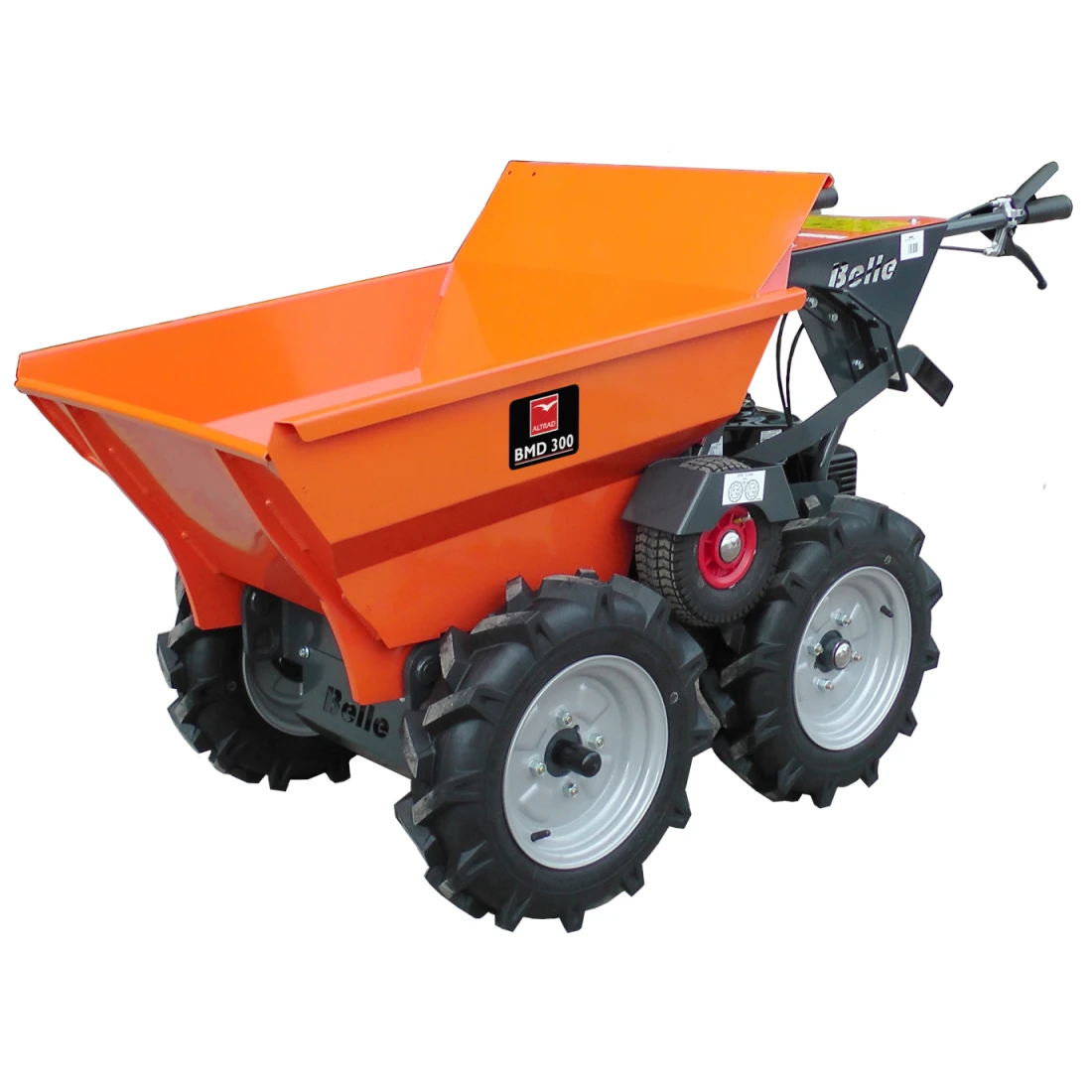

Belle BMD 300 Minidumper

Features:

• Strong heavy-duty design and tipping mechanism, the BMD 300 can easily handle loads of up to 300kg with ease of control
• Climbing ability of up to 20-degree inclines
• 4-wheel drive mode and removable centre wheel for service
• Ergonomic design and in combination with speed and large productivity, the product can allow a multitude of applications
• Ideal for small spaces, its dimensions allow passage through doorways and in confined spaces
• Easy to move around, when turning or working on slopes
• Gearbox with 4 forward gears. Also equipped with reverse gear and disc brakes
• 4 x Multipurpose tyres
• Faster, more flexible than a track-driven dumper
• Quick changeover to flatbed mode
• Loading ramp available as an option, foldable and easily transportable High-grade components conforming to latest quality standards Designed to the latest European health and safety standards
• User and service-friendly, maximise operator productivity
• Engine positioned to allow easy access and service.
• The HONDA industrial engine GXV160 / 5.5Hp, conforms to the latest anti-pollution standards.
• Equipped with parking disc brake for total operator security
• Centre wheel engaging 4 wheel drive when loaded on rough terrain
• The lower position of the skip permits fast tipping with no strain or operator fatigue.
• Perfectly balanced when working with full load.
• All 4 wheels are identically sized and easy to replace
• Additional bearings to support axle and strengthening plate
• Bottom protection plate to avoid damage by stones
• Reduced maintenance

Technical Specification:

• Ref – BMD01
• Model – BMD 300 c/w Multi-purpose tyres
• Motor Power (Hp/kW) – Honda Petrol
• GXV160 4.4 / 3.2
• Fuel Tank Capacity(Ltr) – 2.5
• Max. Travel Speed – Fwd (km/h) – 6
• Max. Travel Speed – Rev (km/h) – 2.6
• Skip Capacity – Level Filled (litres) – 113
• Skip Capacity – Heaped (litres) – 134
• Max. Payload (kg) – 300
• Dimensions (mm) – W: 716, L: 934, H: 1609
• Weight (kg) – 155
