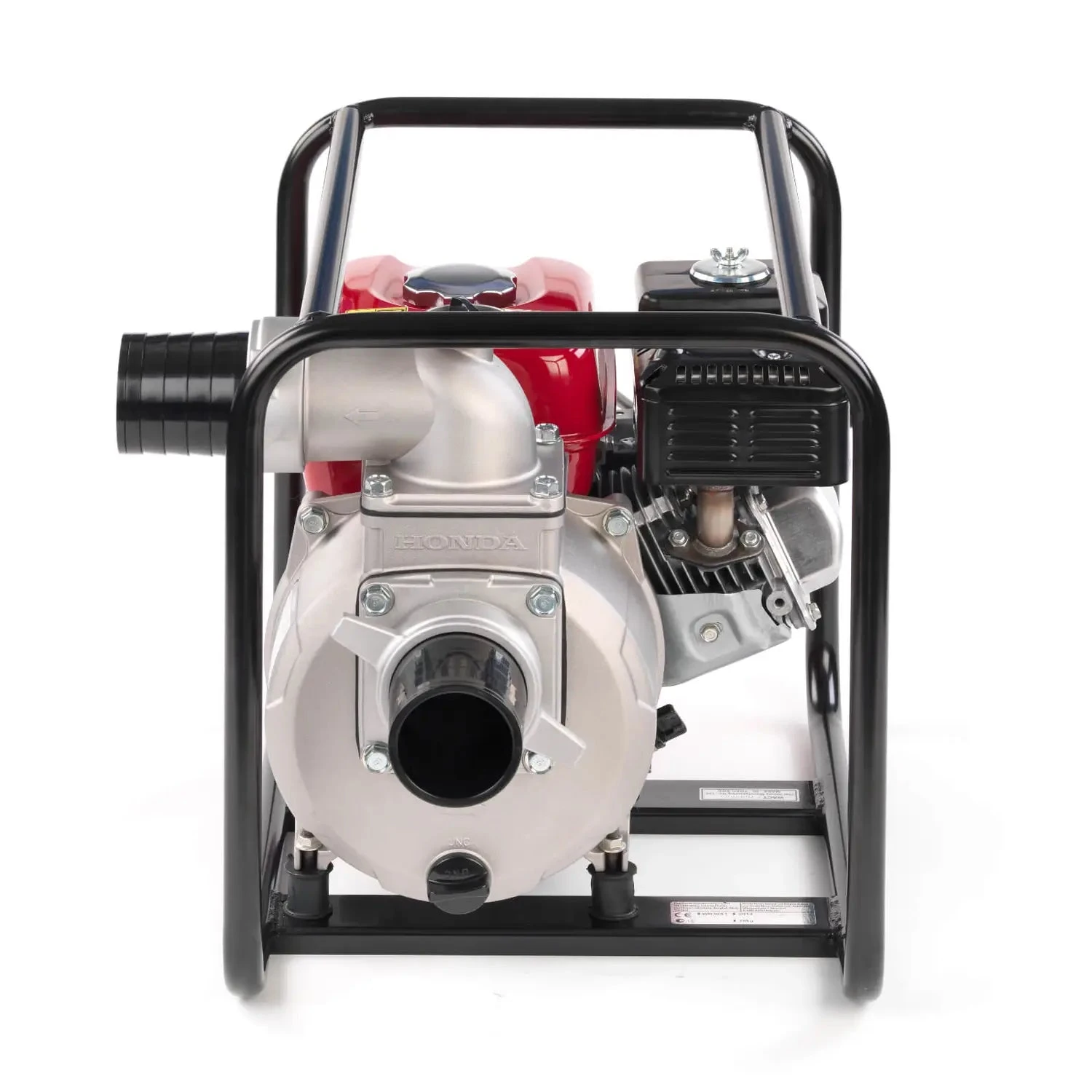

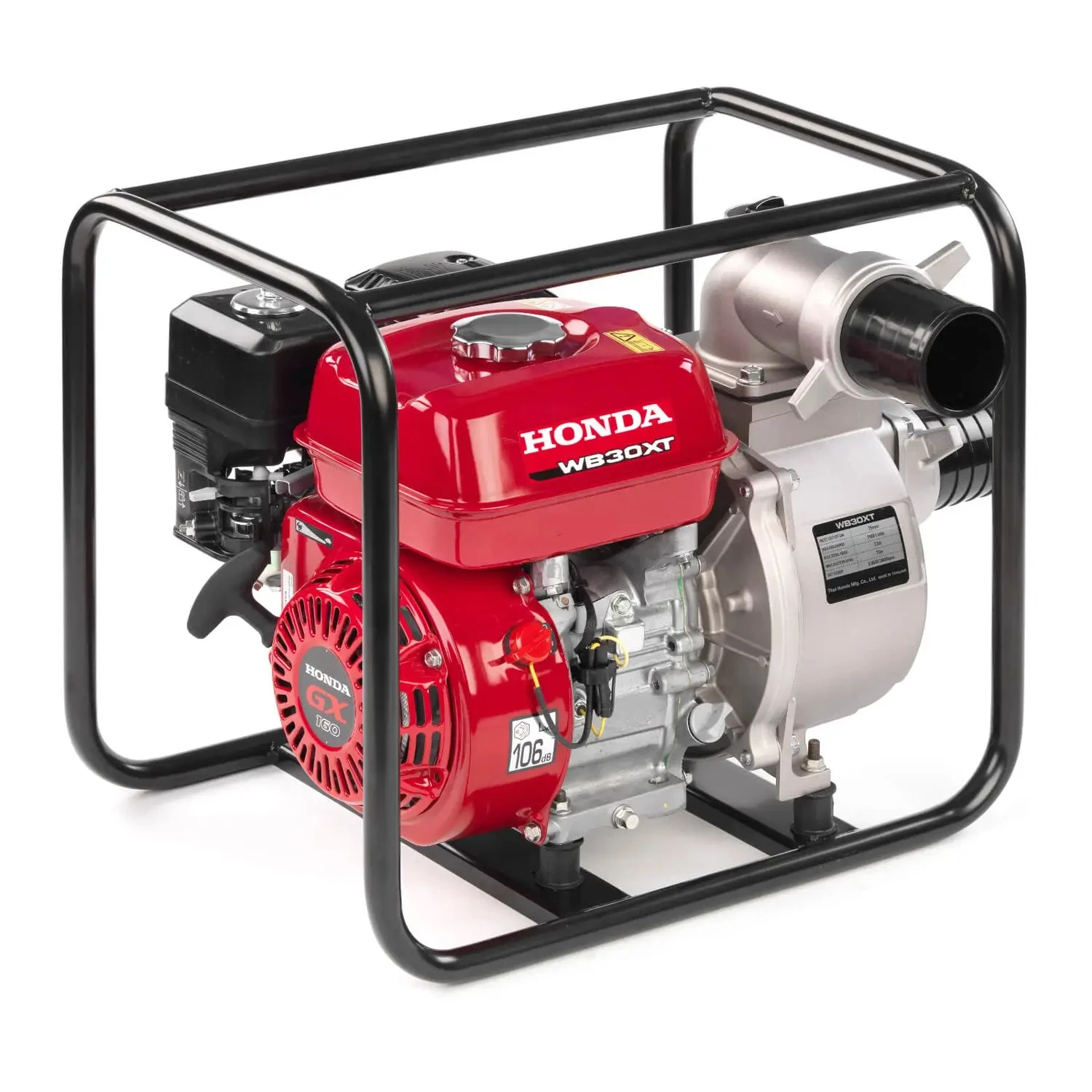

Honda WB 30 3-inch Water Pump

Features:

NOTE: Hosepipe does not come included.

Oil Alert: Prevents engine damage by automatically shutting the unit down if the oil drops below a safe operating level

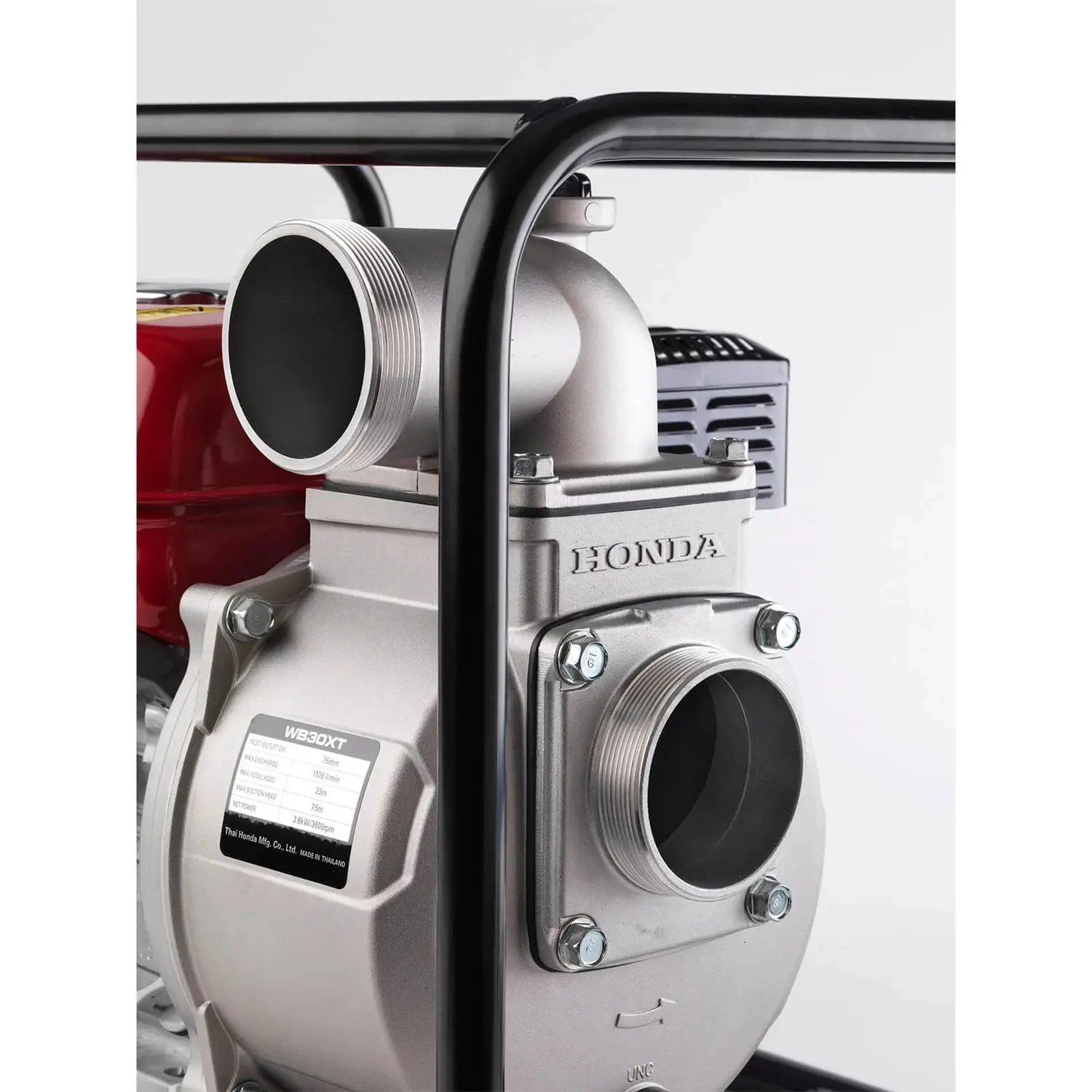

Cast Iron Volute and Impeller: The cast-iron volute and impeller give you superior durability for long-life performance, even when pumping abrasive silts

OHV-4 Stroke Engine: Powerful and efficient with trusted reliability. Easy starting in all conditions with automatic decompression to reduce the pull force required

Anti-Vibration System: Vibration can contribute to wear and tear on your machine. We’ve added straight engine rubber mounts to reduce mechanical stress on the entire unit.

Technical Specification:

Pump:

• Maximum Output Capacity (L/min) – 1100
• Inlet/Outlet Diameter Thread Type (mm/inches) – 80/3-PF
• Total Head (m) – 23
• Suction Head (m) – 8
• Pressure (bars) – 2.8
• Debris Size Capacity (mm) – 6

Engine:

• Engine model – GX160
• Engine Type – 4-stroke, OHV, **1 Cylinder
• Displacement (cm³) – 163
• Bore × Stroke (mm) – 68 X 45
• Engine Speed (rpm) – 3600 max
• Engine Net Power (kW) – 3.6
• Cooling System – Forced air
• Ignition System – Transistor
• Oil Capacity (L) – 0.6
• Fuel Tank Capacity (L) – 3.1
• Operating Time – 1h54 approx
• Starter System – Recoil
• Sound Pressure Level at Workstation (dB(A)) – 89
• Guaranteed Sound Power Level (dB(A)) – 103

Dimensions:

• Length (mm) – 510
• Width (mm) – 385
• Height (mm) – 455
• Dry weight (kg) – 27
